tidyHeatmap

Lifecycle:maturing DOI

Please have a look also to

website: stemangiola.github.io/tidyHeatmap/

tidyHeatmap is a package that introduces tidy principles to the creation of information-rich heatmaps. This package uses ComplexHeatmap as graphical engine.

Advantages:

Functions/utilities available

Function Description
heatmap Plot base heatmap
add_tile Add tile annotation to the heatmap
add_point Add point annotation to the heatmap
add_bar Add bar annotation to the heatmap
add_line Add line annotation to the heatmap
save_pdf Save the PDF of the heatmap

Installation

To install the most up-to-date version

devtools::install_github("stemangiola/tidyHeatmap")

To install the most stable version (however please keep in mind that this package is under a maturing lifecycle stage)

install.packages("tidyHeatmap")

Contribution

If you want to contribute to the software, report issues or problems with the software or seek support please open an issue here

Input data frame

The heatmaps visualise a multi-element, multi-feature dataset, annotated with independent variables. Each observation is a element-feature pair (e.g., person-physical characteristics).

element feature value independent_variables
chr or fctr chr or fctr numeric

Let’s transform the mtcars dataset into a tidy “element-feature-independent variables” data frame. Where the independent variables in this case are ‘hp’ and ‘vs’.

mtcars_tidy <-
    mtcars %>%
    as_tibble(rownames="Car name") %>%

    # Scale
    mutate_at(vars(-`Car name`, -hp, -vs), scale) %>%

    # tidyfy
    pivot_longer(cols = -c(`Car name`, hp, vs), names_to = "Property", values_to = "Value")

mtcars_tidy
## # A tibble: 288 x 5
##    `Car name`       hp    vs Property Value[,1]
##    <chr>         <dbl> <dbl> <chr>        <dbl>
##  1 Mazda RX4       110     0 mpg          0.151
##  2 Mazda RX4       110     0 cyl         -0.105
##  3 Mazda RX4       110     0 disp        -0.571
##  4 Mazda RX4       110     0 drat         0.568
##  5 Mazda RX4       110     0 wt          -0.610
##  6 Mazda RX4       110     0 qsec        -0.777
##  7 Mazda RX4       110     0 am           1.19
##  8 Mazda RX4       110     0 gear         0.424
##  9 Mazda RX4       110     0 carb         0.735
## 10 Mazda RX4 Wag   110     0 mpg          0.151
## # … with 278 more rows

Plot

For plotting, you simply pipe the input data frame into heatmap, specifying:

mtcars

mtcars_heatmap <-
    mtcars_tidy %>%
        heatmap(`Car name`, Property, Value ) %>%
        add_tile(hp)

mtcars_heatmap

Save

mtcars_heatmap %>% save_pdf("mtcars_heatmap.pdf")

Grouping

We can easily group the data (one group per dimension maximum, at the moment only the vertical dimension is supported) with dplyr, and the heatmap will be grouped accordingly

mtcars_tidy %>%
    group_by(vs) %>%
    heatmap(`Car name`, Property, Value ) %>%
    add_tile(hp)

Custom palettes

We can easily use custom palette, using strings, hexadecimal color character vector,

mtcars_tidy %>%
    heatmap(
        `Car name`,
        Property,
        Value,
        palette_value = c("red", "white", "blue")
    )

Or a grid::colorRamp2 function for higher flexibility

mtcars_tidy %>%
    heatmap(
        `Car name`,
        Property,
        Value,
        palette_value = circlize::colorRamp2(c(-2, -1, 0, 1, 2), viridis::magma(5))
    )

Multiple groupings and annotations

tidyHeatmap::pasilla %>%
    group_by(location, type) %>%
    heatmap(
            .column = sample,
            .row = symbol,
            .value = `count normalised adjusted`
        ) %>%
    add_tile(condition) %>%
    add_tile(activation)

Annotation types

This feature requires >= 0.99.20 version

“tile” (default), “point”, “bar” and “line” are available

# Create some more data points
pasilla_plus <-
    tidyHeatmap::pasilla %>%
        dplyr::mutate(act = activation) %>%
        tidyr::nest(data = -sample) %>%
        dplyr::mutate(size = rnorm(n(), 4,0.5)) %>%
        dplyr::mutate(age = runif(n(), 50, 200)) %>%
        tidyr::unnest(data)

# Plot

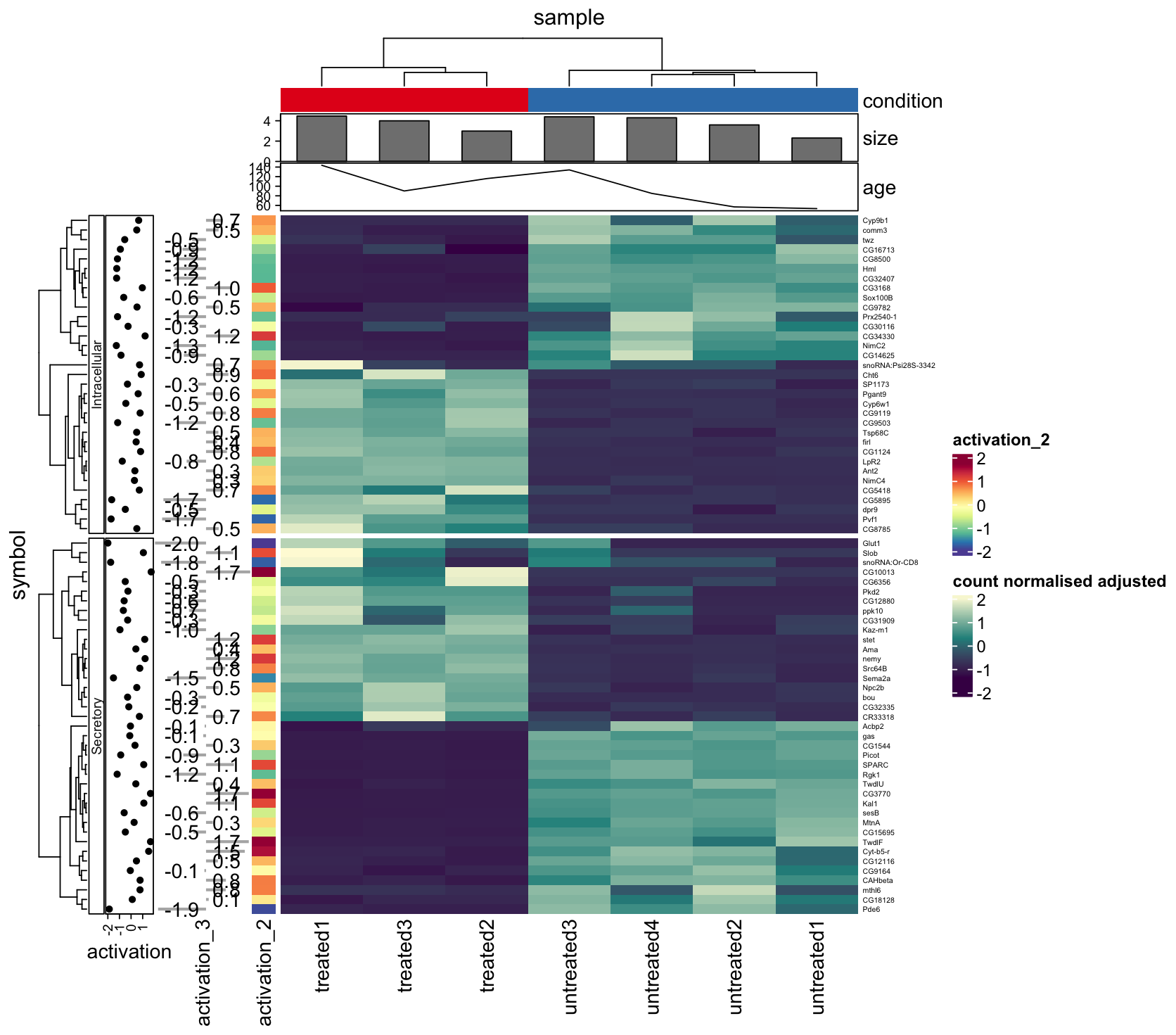

pasilla_plus %>%
        heatmap(
            .column = sample,
            .row = symbol,
            .value = `count normalised adjusted`
        ) %>%
    add_tile(condition) %>%
    add_point(activation) %>%
    add_tile(act) %>%
    add_bar(size) %>%
    add_line(age)
